W15-1/3HL

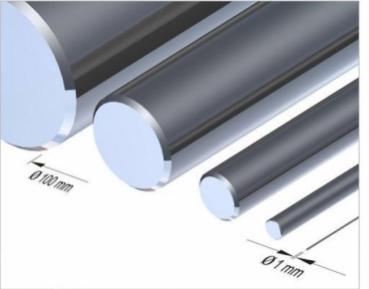

Precision shaft 15h6 as 1/3 commercial length in Cf53 Ø 15 mm, length approx. 2030mm
Material: Cf53 (1.1213)
Surface hardened: HRC min. 59
Hardening depth: Rht min. 0,6mm
Straightness: max 0,3mm/m
Ground: Tolerance h6
Surface roughness: RA max 0,3
Roundness: 5µm
Sold in 6m increments only
Data sheets from W15-1/3HL, technical info (if available) can be found in the Documents folder on the right.
