WSB40HL

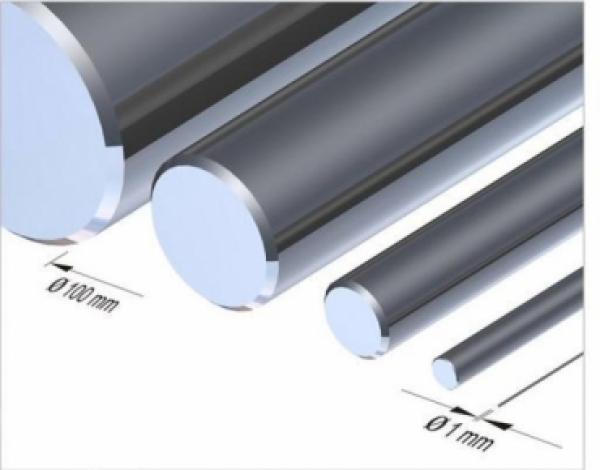

Precision shaft 40h6 as commercial length in X90CrMoV18 Ø 40 mm, length approx. 6100mm
Material: X90CrMoV18 (1.4112)
Surface hardened: HRC min. 54
Hardening depth: Rht min. 1,5mm
Straightness: max 0,2mm/m
Ground: Tolerance h6
Surface roughness: RA max 0,3
Roundness: 7µm
Sold in 6m increments only
Data sheets from WSB40HL, technical info (if available) can be found in the Documents folder on the right.
General information about surface hardened precision shafts in X90CrMoV18:
Maintenance and care of the shaft should be performed regularly to maintain its performance and service life. Regular maintenance and inspection can detect and repair damage or wear on the shaft at an early stage, which will extend the service life of the shaft.
