precision shaft around 10h7 in Cf53-chrome plated - as half commercial length approx. 3050mm
WV10-1/2HL Precision shaft 1/2 commercial length ca. 3,05m, Cf53-chrom
precision shaft around 10h7 in Cf53-chrome plated - as half commercial length approx. 3050mm

WV10-1/2HL Precision shaft 1/2 commercial length ca. 3,05m, Cf53-chrom

Product No.:
WV10-1/2HL-cert0
Shipping time:
1 Week 1 Week (abroad may vary)
Weight:
0.616 kg per m
Minimum order:
6
Sliding scale prices
6-7 m
per 17,99 EUR
13-25 m
per 14,99 EUR
31-55 m
per 11,60 EUR
61-85 m
per 10,00 EUR
91-115 m
per 9,00 EUR
> 115 m
per 9,00 EUR
17,99 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
WV10-1/2HL

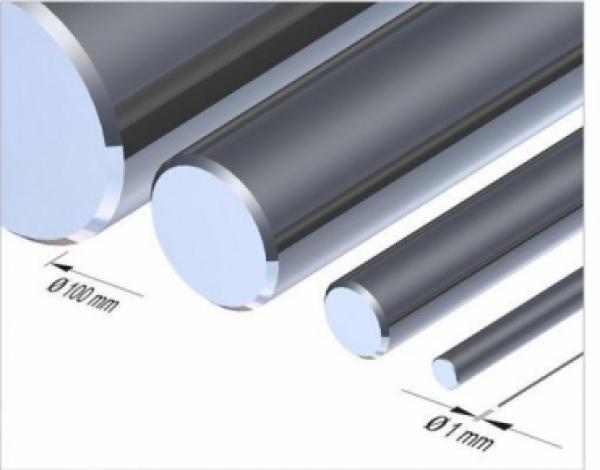

Precision shaft 10h7 as half commercial length in Cf53-chromed Ø 10 mm, length approx. 3050mm

Material: Cf53-chrome plated (1.1213)
Surface hardened: HRC min. 59
Hardening depth: Rht min. 0,4mm
Straightness: max 0,3mm/m
Ground: Tolerance h7
Surface roughness: RA max 0,3
Roundness: 4µm

Sold in 6m increments only

Data sheets from WV10-1/2HL, technical info (if available) can be found in the Documents folder on the right.


General information on surface hardened precision shafts in Cf53 hard chrome plated:

The main advantages of surface hardened chrome plated precision shafts are their high wear resistance, corrosion resistance and improved lubrication properties.

Documents
Datasheet WV  (136.76 KB)
