WKB08-S
Precision shaft 8h6::
Ø 8mm
Material: X46Cr13 (1.4034)
Hardened: min. 52 HRC Rht min.0,4
Precision ground tolerance 6 (0-9µ)
Surface roughness: Ra <= 0,3
Weight: 0,394kg/m
Straightness: max 0,3mm/m
Attention: Shown price per piece includes 1 x cutting costs per basket quantity.
We generally deliver burr-free (only from a length of at least 50mm), but without chamfer due to a general strip finishing after cutting (without surcharge) !
Data sheets from WKB08-S, technical info (if available) can be found in the Documents folder on the right.

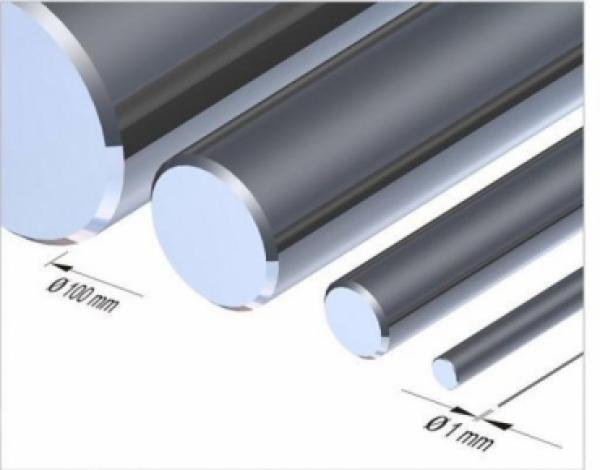

General information on surface hardened precision shafts in X46Cr13:
Precision shafts in X46Cr13 material are widely used in applications where high accuracy and performance are required, such as automotive, machinery, and aerospace. The use of X46Cr13 material surface hardened precision shafts provides higher strength and durability, resulting in higher reliability and longer component life.
