WSB50-M

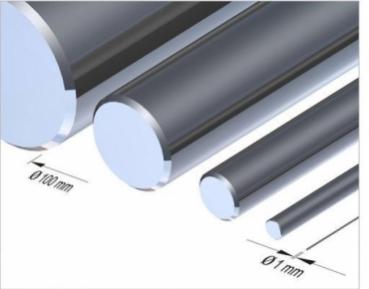

Precision shaft 50h6::
Ø 50mm
Material: X90CrMoV18 (1.4112)
Hardened: min. 54 HRC Rht min.1,5
Precision ground tolerance 6 (0-16µ)
Surface roughness: Ra <= 0,3
Weight: 15,413kg/m
Straightness: max 0,2mm/m
Attention: Shown price per piece includes 1 x cutting costs per basket quantity.
We generally deliver burr-free (only from a length of at least 50mm), but without chamfer due to a general strip finishing after cutting (without surcharge) !
Data sheets from WSB50-M, technical info (if available) can be found in the Documents folder on the right.
