WSB60-S Precision shaft induction hardened, X90CrMoV18, fix length

WSB60-S Precision shaft induction hardened, X90CrMoV18, fix length
WSB60-S
Precision shaft 60h6::
Ø 60mm
Material: X90CrMoV18 (1.4112)
Hardened: min. 54 HRC Rht min.2,2
Precision ground tolerance 6 (0-19µ)
Surface roughness: Ra <= 0,3
Weight: 22,195kg/m
Straightness: max 0,2mm/m
Attention: Shown price per piece includes 1 x cutting costs per basket quantity.
We generally deliver burr-free (only from a length of at least 50mm), but without chamfer due to a general strip finishing after cutting (without surcharge) !
Data sheets from WSB60-S, technical info (if available) can be found in the Documents folder on the right.
Precision shaft 60h6::
Ø 60mm
Material: X90CrMoV18 (1.4112)
Hardened: min. 54 HRC Rht min.2,2
Precision ground tolerance 6 (0-19µ)
Surface roughness: Ra <= 0,3
Weight: 22,195kg/m
Straightness: max 0,2mm/m
Attention: Shown price per piece includes 1 x cutting costs per basket quantity.
We generally deliver burr-free (only from a length of at least 50mm), but without chamfer due to a general strip finishing after cutting (without surcharge) !
Data sheets from WSB60-S, technical info (if available) can be found in the Documents folder on the right.

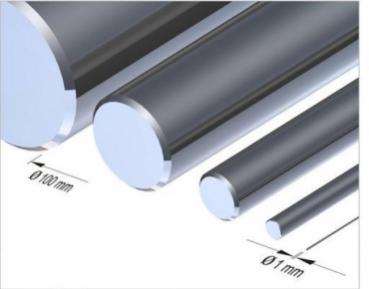

General information on surface hardened precision shafts in X90CrMoV18:
X90CrMoV18's high resistance to corrosion and abrasion makes precision shafts made from this material ideal for applications in the food and beverage industry. Surface hardening can help precision shafts have a higher resistance to fatigue and wear, which can be beneficial in applications where high speeds and loads are encountered.- Datasheet WSB (136.54 KB)
