WV16HL
Precision shaft 16h7 as commercial length in Cf53-chromed Ø 16 mm, length approx. 6100mm
Material: Cf53-chrome plated (1.1213)
Surface hardened: HRC min. 59
Hardening depth: Rht min. 0,6mm
Straightness: max 0,2mm/m
Ground: Tolerance h7
Surface roughness: RA max 0,3
Roundness: 5µm
Sold in 6m increments only
Data sheets from WV16HL, technical info (if available) can be found in the Documents folder on the right.

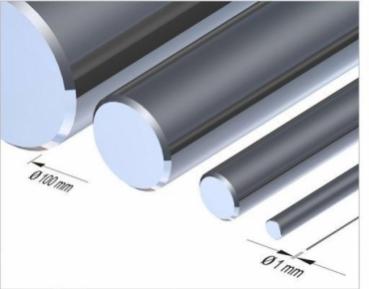

General information on surface hardened precision shafts in Cf53 hard chrome plated:
Shaft surface roughness and accuracy are critical to the performance and life of the entire assembly. Precision machining and careful surface finishing can achieve the required tolerances and a uniform, smooth surface.
